Laboratory bench top boiler water quality oil tester

ERUN-ST-OD380
Widely used in the determination of water oil, oil, animal and plant oil content.
ERUN-ST-OD380
ERUN-ST-OD380
ERUN-ST-OD380
ERUN-ST-OD380
ERUN-ST-OD380
ERUN-ST-OD380
Introduction

Brand: Erun environmental protection

Name: laboratory bench top boiler water quality oil detector

Model number: ERUN-ST-OD380

Parameters: Oil(Infrared spectrometry)

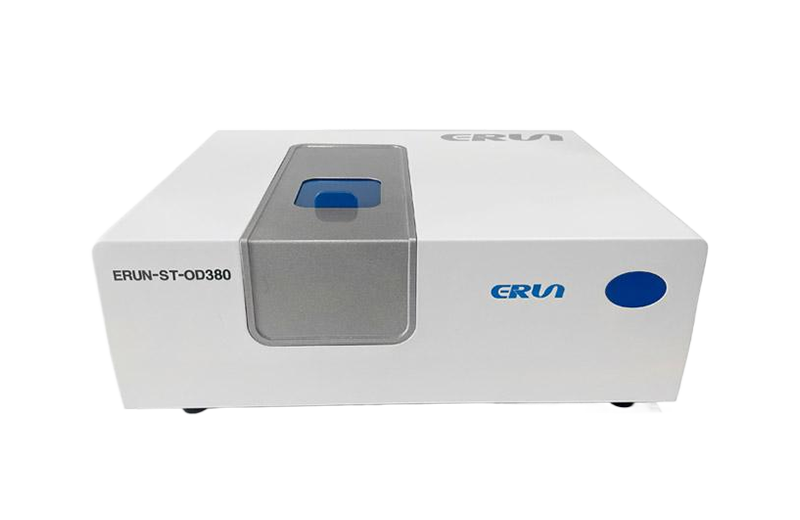

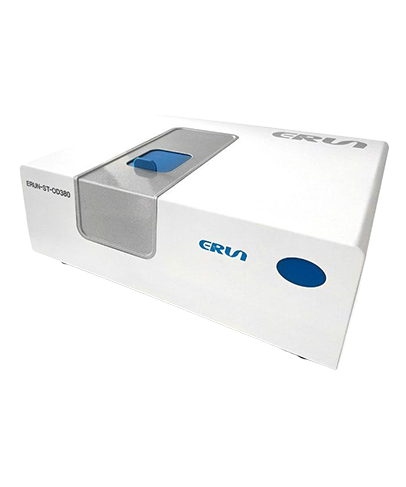

The ERUN-ST-OD 380 Laboratory bench bench Infrared Spectrometer is an instrument for the analysis of oil content in liquid samples. Table water oil tester based on infrared spectroscopy technology, in line with the HJ 637-2018 water quality of petroleum and animal and plant oil and other standards, using different wavelengths of infrared light and the oil molecules in the sample interaction, laboratory infrared spectral oil detector to determine the oil content by measuring the intensity absorbed by the light to scatter the sample. Widely used in the determination of water oil, oil, animal and plant oil content.

Parameters



  • Range of concentration measurements:

  • 0.0008mg/L~96000 mg/L

  • Detection limit:

  • DL0.04mg/L

  • Repeatability relative standard deviation:

  • RSD0.6%( 20 to 30 mg/mL of standard oil sample)

  • Absorbance range:

  • 0.000004.00000AU,4-segment range is adjustable

  • Time of sample analysis:

  • 30秒

  • Methyl resolution:

  • >3%

  • Operating ambient temperature:

  • 5~35℃

  • Relative humidity of the operating environment:

  • 20% ~ 80%

  • Console size:

  • 470m× 330mm × 150mm

  • Note: It should be conducted without significant vibration and electromagnetic interference and when avoiding direct sunlight

Features



  • The wavelength is automatically calibrated

  • Zero point automatic adjustment

  • The non-dispersion measurements are read directly

  • Optical mechanical and electrical integration

  • The error does not exceed ± 1.0%

  • With a data cable to connect to the computer

  • Can be stored and printed

  • Compatible with multiple operating systems

  • The oil content of the measured substance can be measured simultaneously

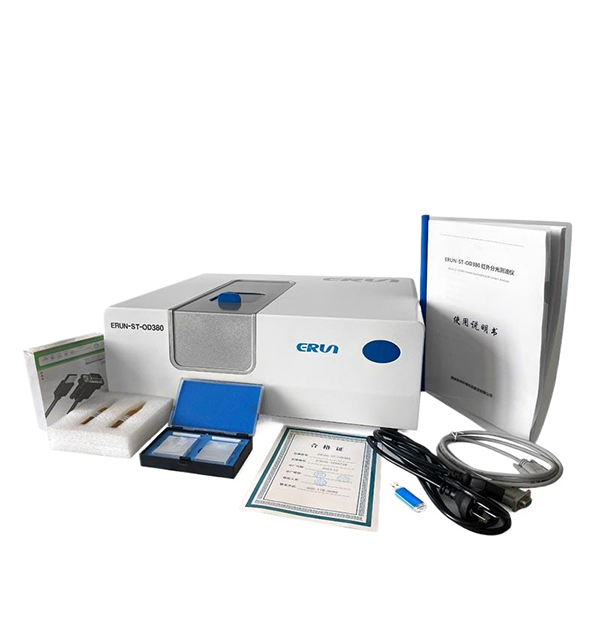

Configuration Checklist


NameModel number

Quantity

Oil measuring instrument

ERUN-ST-OD380

1

Instrument motherboard card


1

 USB data cable

USB转232

1

Special control software


1

Quartz petri dish

4cm

2

Infrared standard oil substance

1000mg/L

2

Host power cord


1

product specification


1

product qualification certificate


1

Product warranty and repair card


1
