Brand：Erun

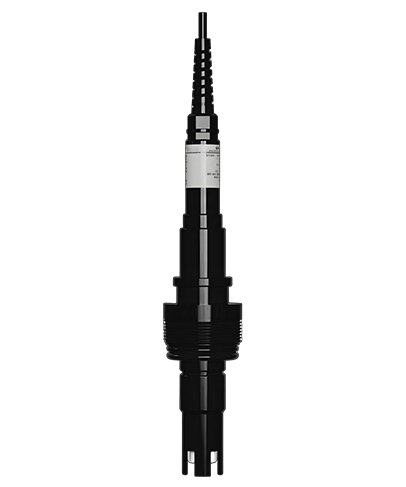

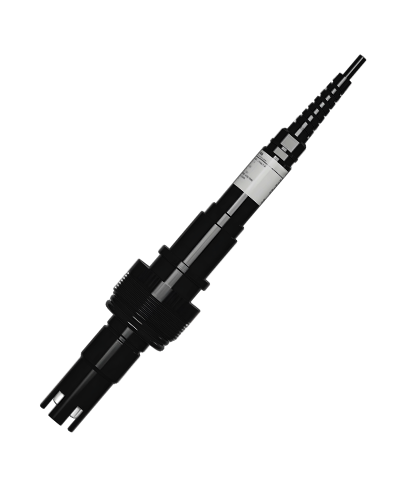

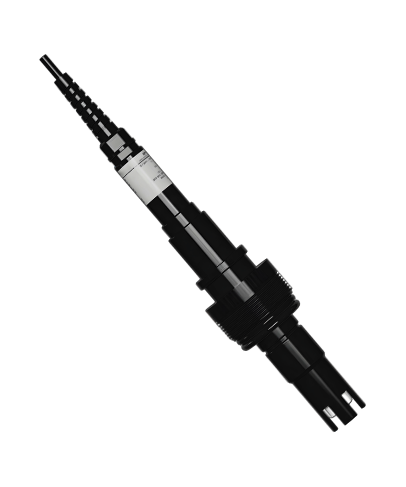

Online Copper Ion Sensor
Model：ERUN-H6B
This product is a new type of online water quality copper ion sensor independently developed by ERUN Group. It has the characteristics of high stability, high precision, etc., can automatically detect temperature and perform automatic temperature compensation, and can accurately measure the copper ion value and temperature value in the solution. It is widely used for continuous real-time monitoring of copper ions in drinking water, sewage, boiler water, aquaculture and biological medicine industries.
| Measuring Range | 0.064~6400ppm |
| Accuracy | ±5%FS |
| Resolution | 0.001ppm |
| pH Range | 2~6pH |
| Temperature Measuring Range | 0~50.0℃ |
| Sensor Type | Solid-State Membrane |
| Repeatability | ＜90% |
| Pressure Range | 0-1bar |
| Housing Material | ABS |
| Data Communication | RS485（MODBUS-RTU） |
| Process Connection | M39*1.5 |
| Signal Cable Length | Standard 5-meter signal cable |
| Output | 4-20mA |
| Installation method | flow-through Type |
| IP Rating | IP68 |
High Precision Measurement
Ensures accurate detection of Cu²⁺ concentration with excellent stability and low drift.
Real-Time Online Monitoring
Provides continuous, real-time copper ion analysis for efficient water quality control.
Automatic Temperature Compensation
Built-in temperature sensor enables automatic compensation, improving measurement accuracy under varying conditions.
Strong Anti-Interference Capability
Designed to maintain reliable performance even in complex industrial water environments.
Low Maintenance & Long Service Life
Durable sensor structure reduces maintenance frequency and operating costs.
Wide Application Range
Suitable for wastewater treatment, industrial water systems, and drinking water monitoring.
