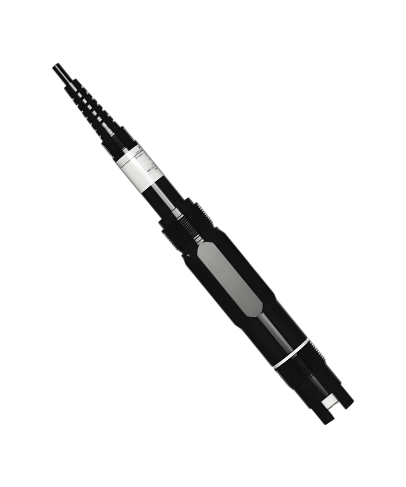

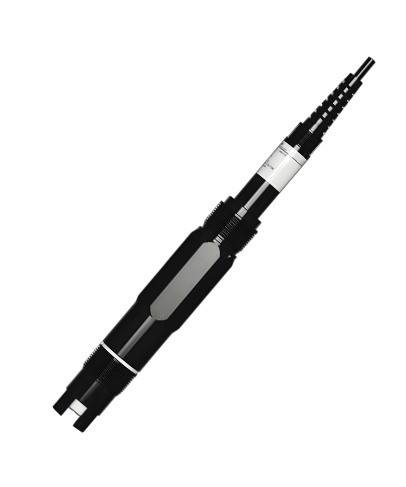

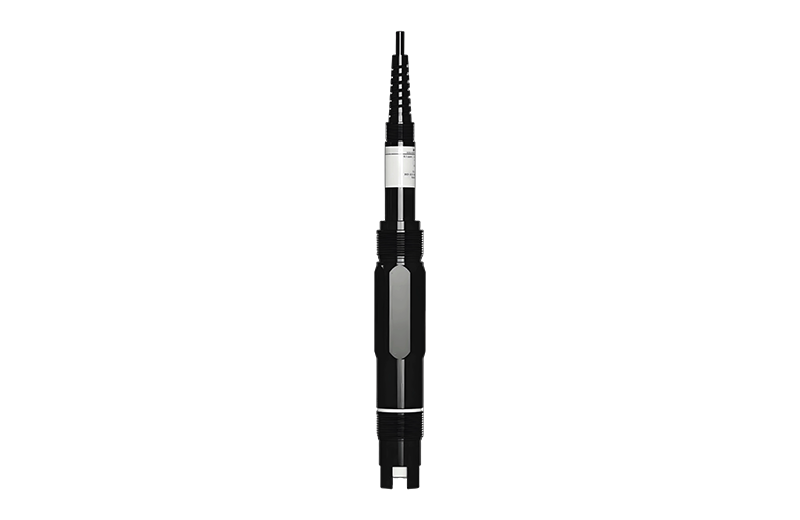

This product is a new type of online water quality copper ion sensor independently developed by ERUN Group. It has the characteristics of high stability, high precision, etc., can automatically detect temperature and perform automatic temperature compensation, and can accurately measure the copper ion value and temperature value in the solution. It is widely used for continuous real-time monitoring of copper ions in drinking water, sewage, boiler water, aquaculture and biological medicine industries.
Measuring Range | 0.064~6400ppm |
Accuracy | ±5%FS |
Resolution | 0.001ppm |
pH Range | 2~6pH |
Temperature Measuring Range | 0~50.0℃ |
Sensor Type | Solid-State Membrane |
Repeatability | ＜90% |
Pressure Range | 0-1bar |
Housing Material | PPS |
Data Communication | RS485（MODBUS-RTU） |
Process Connection | G3/4 |
Signal Cable Length | Standard 5-meter signal cable |
Output | 4-20mA |
Installation method | Immersion Type |
IP Rating | IP68 |
