Brand： Erun

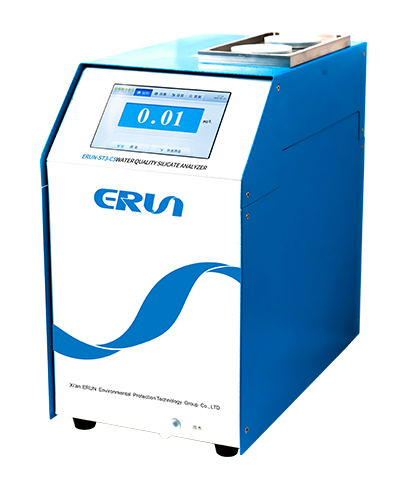

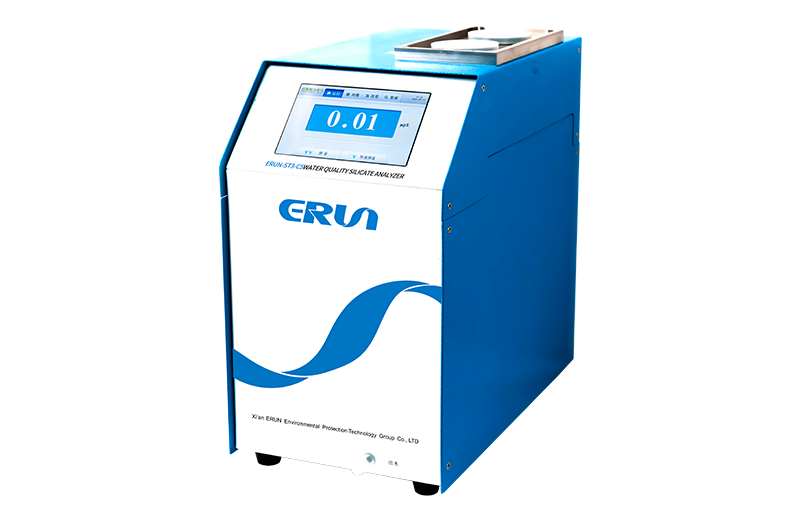

Water Quality Silicate Analyzer
Model： ERUN-ST3-C5
The ERUN-ST3-C5 Silicate Analyzer, developed and manufactured by ERUN Environmental, features an innovative design concept and advanced technology. It offers automatic cleaning and high measurement accuracy, and is suitable for applications in power generation, petrochemical, paper, metallurgical, and waste heat recovery industries. The instrument is especially designed for measuring silicate concentrations in mixed-bed effluent, EDI ultrapure water, superheated steam, and saturated steam.
Measurement range | 0-200μg/1，0-2000μg/L |
Indication error | ±1%F.S |
Resolution | 0.01μg/L |
Reagent dosage | Approximately 60 milliliters per sample of water |
Sample conditions | No Bubbles |
Verification period | 1-2 times per year |
Sample dosage | 100 mL per unit |
Power supply source | Direct current 24V power supply |
Environmental temperature | （5~45）℃ |
Instrument size | 240x320x300mm |
1. One-touch measurement, fully automatic with no manual intervention, ensuring accurate results.
2. Automatic cleaning after each measurement, requiring no manual operation.
3. Fast measurement mode, improving efficiency and reducing time costs.
4. Simultaneous measurement of reference and color solutions for enhanced accuracy.
5. Dual optical path photometric detection, overcoming light source drift for long-term stability and high precision.
6. Long calibration interval, typically 1–2 times per year.
7. 5-inch color LCD touchscreen, offering a user-friendly interface and easy operation.
8. Large-capacity data storage, allowing convenient historical data access.
