The core testing parameters for boiler steam condensate water primarily include pH, conductivity, iron ions, and total hardness. Regular monitoring using specialized benchtop water quality analysis instruments can effectively determine condensate contamination levels, which is crucial for the safe recovery of condensate, saving fuel and water resources.
Are you discharging valuable steam condensate water directly into the drains? This is equivalent to discarding pre-heated, purified water along with expensive thermal energy. In fact, recycling clean condensate is one of the most direct energy-saving measures for boiler systems, potentially saving up to 20% in fuel costs. However, the prerequisite for recycling is ensuring its purity, which relies on a scientific and rigorous testing protocol.
Condensate is inherently high-temperature, high-quality distilled water and should ideally be reused directly. However, during transport and use, it can become contaminated in several ways:
System Corrosion: Dissolved oxygen and carbon dioxide can cause pipeline and equipment corrosion, introducing iron ions, copper ions, and other corrosion products into the condensate.
Steam Contamination: If boiler carryover occurs or steam is contaminated by process materials, impurities can enter the condensate.
Leakage: Heat exchanger leakage is a common risk, potentially allowing hardness ions, chloride ions, etc., from cooling water into the condensate system.
Reusing contaminated condensate without verification poses risks far greater than the recycling benefits:
Corrosion products (like iron ions) can deposit inside the boiler, forming secondary scale that severely impacts heat transfer.
High hardness water directly leads to boiler scaling; a 1mm thick scale can increase fuel consumption by 5%~8% (Source: Industrial Boilers journal).
Oils or organic matter can cause foaming and carryover, contaminating steam quality.
Therefore, conducting a strict "health check" on condensate is the sole basis for deciding whether it is suitable for reuse.
Referring to the Water Quality for Industrial Boilers (GB/T 1576-2018) standard, the following parameters should be closely monitored for recycled condensate:
| Testing Parameter | Significance & Risk | Suggested Control Limit (Reference) | Primary Source of Contamination |
pH Value | Indicates water corrosivity. Low pH (acidic) is characteristic of CO₂ corrosion, accelerating system-wide corrosion. | >8.3 (>8.8 for systems with copper) | Dissolved Carbon Dioxide |
Conductivity | Comprehensive indicator reflecting the total dissolved impurities. A sudden increase often signals severe contamination. | <50 μS/cm (Target) | Cooling Water Leakage, Impurity Ingress |
Iron Ions (Fe²⁺/Fe³⁺) | Core indicator directly reflecting the degree of system corrosion. High iron content means pipes and equipment are corroding. | <0.3 mg/L (Target <0.1 mg/L) | System Corrosion |
Total Hardness | Sensitive indicator for detecting cooling water (especially Ca/Mg ions) leakage. Hardness exceeding limits indicates scaling risk. | Not Detected (≈0 mmol/L) | Heat Exchanger Leakage |
Oil Content / TOC | Detects leakage of process materials or lubricating oils. Can cause boiler foaming and scaling. | Not Detected (Target) | Heat Exchanger Leakage |
Pro Tip: Conductivity is the best and fastest screening indicator. If an abnormal increase in conductivity is detected, immediate confirmatory analysis for specific parameters like iron ions and hardness using benchtop precision instruments is essential.
Analysis of recent boiler water treatment project tender documents shows that a standardized laboratory capable of fully assessing condensate quality typically requires the following core benchtop instruments:
1. Benchtop pH Meter
Function: Precisely measures condensate pH to assess acidic corrosion potential.
Requirements: Accuracy of at least 0.01 pH, with automatic temperature compensation (ATC).
2. Benchtop Conductivity Meter
Function: Precisely measures condensate conductivity, verifies online instrument data, and serves as the primary criterion for reuse decisions.
Requirements: Range covering 0~200 μS/cm, high accuracy, with temperature compensation.

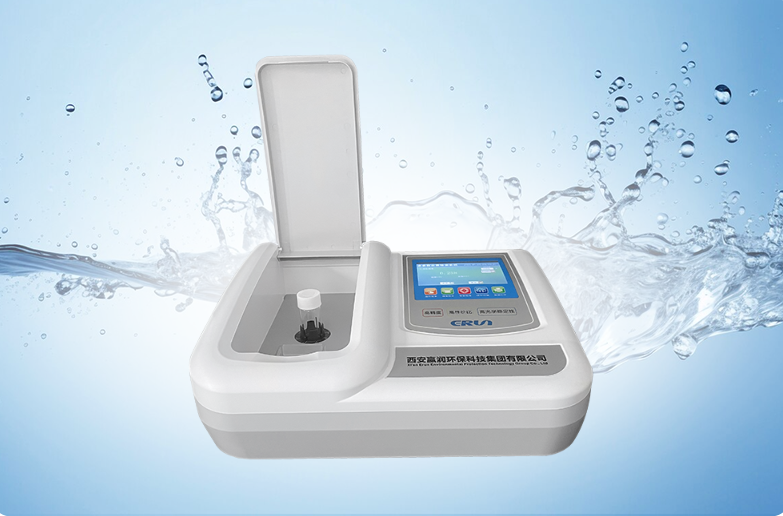

3. Portable/Benchtop Spectrophotometer
Function: This is the key equipment for detecting specific metal ions like iron ions. Using specific chemical reagent kits, colorimetric analysis can be performed, providing accurate and intuitive results.
Requirements: Wavelength range covering common parameters (e.g., iron around 510nm), user-friendly operation.
4. Digital Titrator
Function: Used for accurately determining condensate total hardness. Compared to traditional EDTA titration, digital titrators eliminate human reading errors, providing more reliable results.
Requirements: High precision, good repeatability, easy operation.
For enterprises seeking efficiency and compliance, choosing an integrated testing solution is wise. For instance, the Yinrun Boiler Water Benchtop Water Quality Analyzer series often integrates the aforementioned functions or supporting methods, providing a complete solution from instruments and reagents to operational procedures. This is particularly suitable for small-to-medium boiler rooms and factory laboratories, effectively streamlining workflows and ensuring data complies with GB/T standards.
Background: A chemical plant aimed to save energy by recycling condensate. However, shortly after implementation, boiler feedwater pumps experienced frequent failures, and boiler blowdown rates increased.
Diagnosis Process:
Initial Screening: Using a benchtop conductivity meter, condensate from multiple points was tested, revealing conductivity as high as 150 μS/cm at some locations, far exceeding expectations.
Precise Identification:
Using a spectrophotometer on high-conductivity samples, iron ion concentrations were found to be up to 2.5 mg/L, indicating severe system corrosion.
Using a digital titrator for hardness testing yielded "not detected" results, ruling out cooling water leakage.
Root Cause Analysis: Investigation revealed that the highly corrosive condensate came from an old carbon steel pipeline section with failed steam traps. Dissolved oxygen and carbon dioxide were the primary corrosive agents.
Solution & Outcome: The plant replaced the steam traps and addressed the severely corroded pipe sections with replacements or linings. Additionally, online conductivity meters were installed at the recovery tank inlet, and a daily testing regimen for iron ions and pH using benchtop instruments was established. Post-retrofit, iron ion levels stabilized below 0.1 mg/L, condensate recovery rates increased to over 85%, achieving annual savings in fuel and water treatment costs exceeding 400,000 RMB, and equipment failure rates dropped significantly.
Systematic water quality testing of boiler steam condensate is by no means a dispensable cost. It is a technical investment that delivers significant economic returns. By equipping necessary benchtop analysis instruments and establishing strict monitoring procedures, you can:
Safely recycle high-quality condensate, directly reducing fuel and water treatment costs.
Accurately assess system health, preventing equipment damage caused by corrosion and scaling.
Achieve refined management of the boiler system, enhancing overall operational efficiency and safety.
Next Steps: Immediately evaluate your current condensate handling methods and testing capabilities. If you require a benchtop water quality instrument configuration plan tailored to your specific needs or technical consultation, our expert team is ready to assist you.
