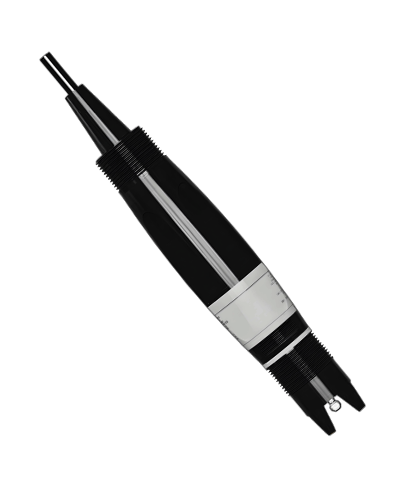

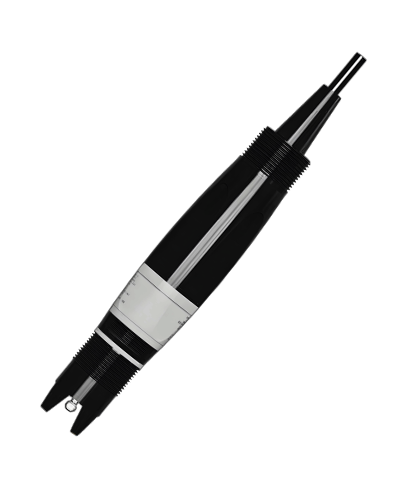

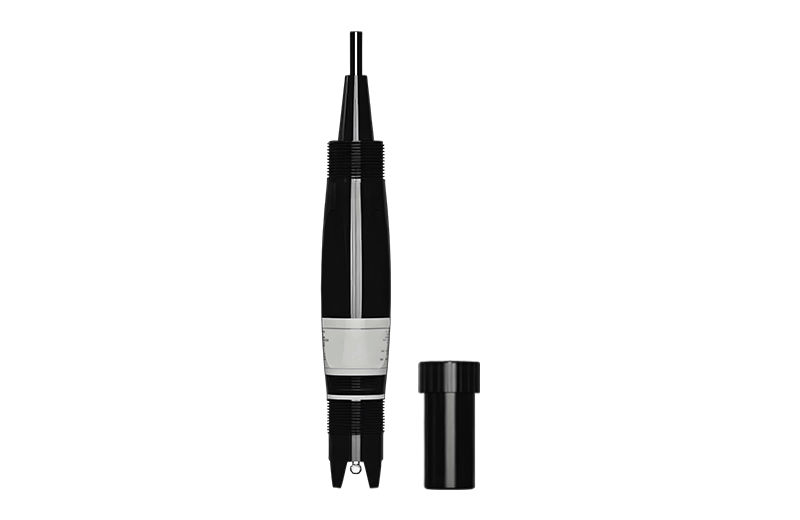

This product is a new type of online water quality pH analyzer independently developed by ERUN Group. It features high stability and high precision. It can automatically detect temperature and perform automatic temperature compensation, enabling accurate measurement of pH and temperature values in solutions. It is widely used for online monitoring of water pH in water treatment, tap water supply, sewage treatment, aquaculture, surface water monitoring, environmental engineering and other field.
Measuring Range | 0~14.00PH |
Accuracy | ±0.02 PH |
Resolution | 0.01 PH |
Zero Potential | 7.00±0.30 PH |
Slope | ≥96% |
Temperature Measuring Range | 0.0-60.0℃ |
Temperature Sensor | Pt1000（Pt100、NTC10K、NTC2.252K） |
Liquid Junction | PTFE |
Pressure Range | 0-3bar |
Housing Material | ABS |
Membrane Resistance | ＜500Ω |
Process Connection | NPT3/4 |
Signal Cable Length | Standard 5-meter signal cable |
Electrical Connection | Pin type or BNC interface |
Installation Method | Immersion Type |
IP Rating | IP68 |
