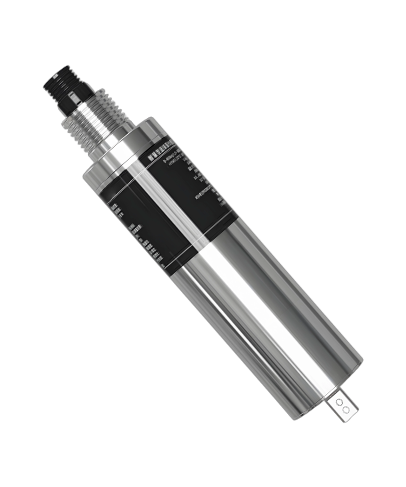

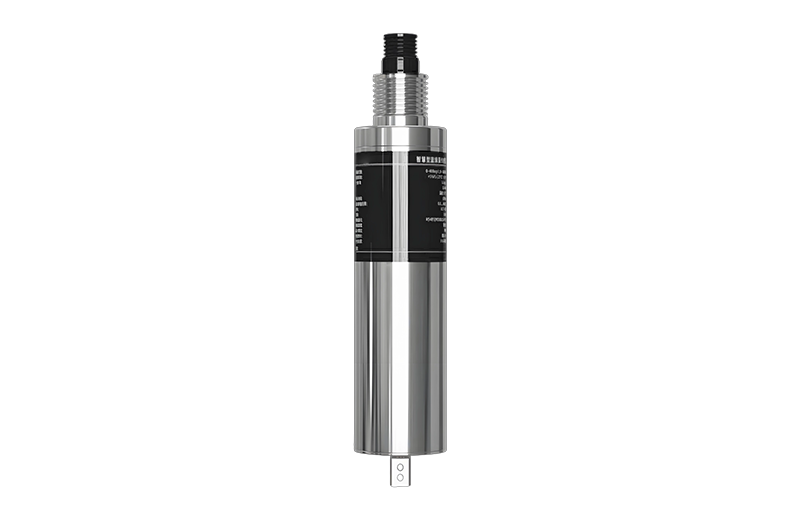

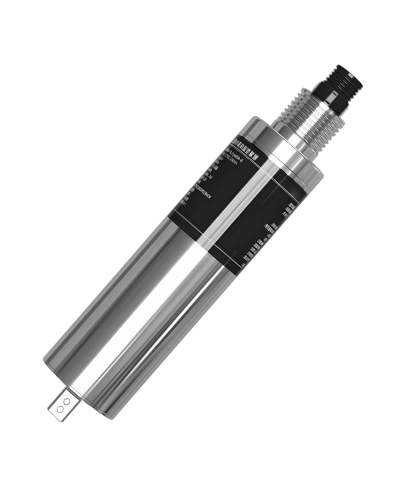

This product is an online water quality chlorophyll analyzer independently developed by ERUN Group. Based on the ultraviolet fluorescence principle, the sensor is equipped with precision optical components. It features a compact and exquisite design, simple and fast installation and maintenance, and can effectively resist ambient light interference, demonstrating excellent measurement repeatability and high stability. It is widely used for continuous real-time monitoring of chlorophyll content in rivers, lakes, marine surveys, aquaculture, algae and phytoplankton.
Measuring Range | 0~400μg/L；0~100RFU |
Working Principle | Fluorescence Method |
Resolution | 0.1μg/L；0.1%RFU |
Accuracy | ±5%FS |
Maximum Immersion Depth | 10m |
Temperature Range | 0.0~50.0℃ |
Power Supply | DC12V/DC24V |
Output Signal | RS485 |
Installation Method | Immersion Type |
Housing Material | stainless steel |
Connection Thread | NPT3/4 |
Cable Length | Standard 10m |
IP Rating | IP68 |
