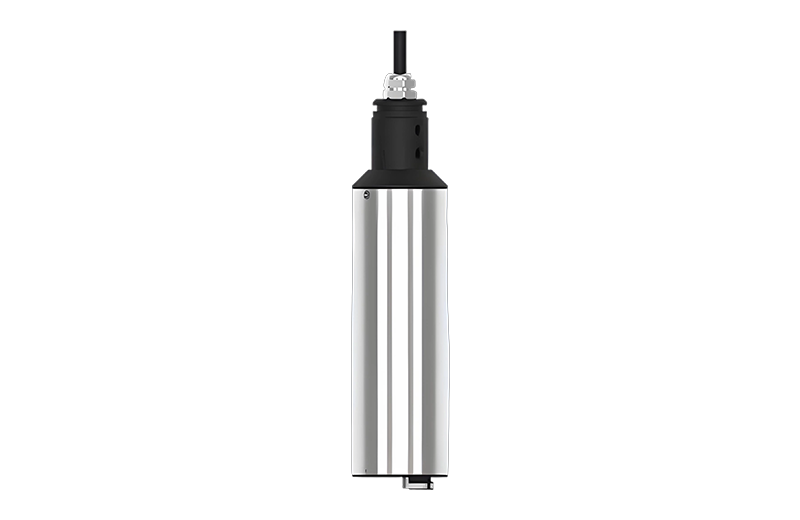

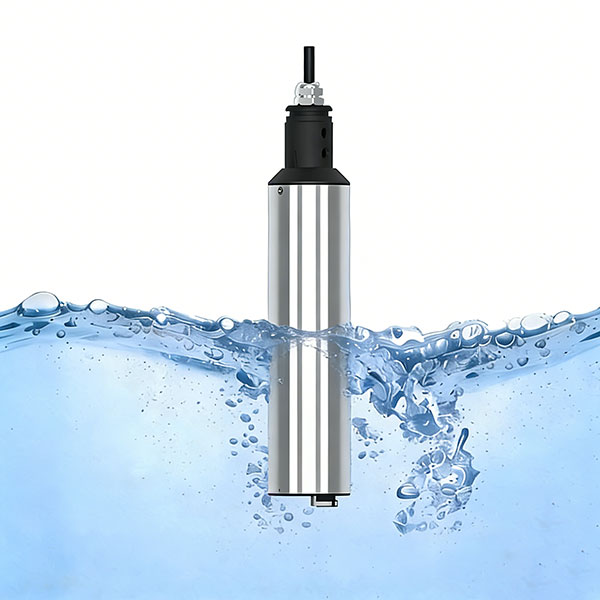

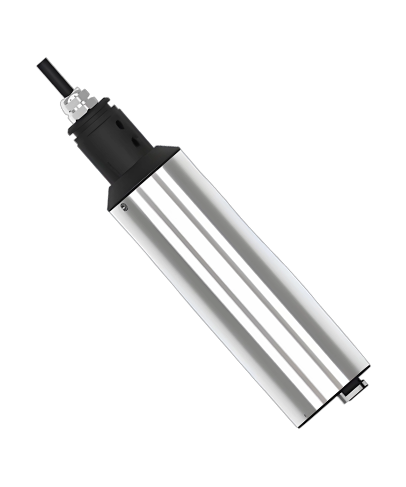

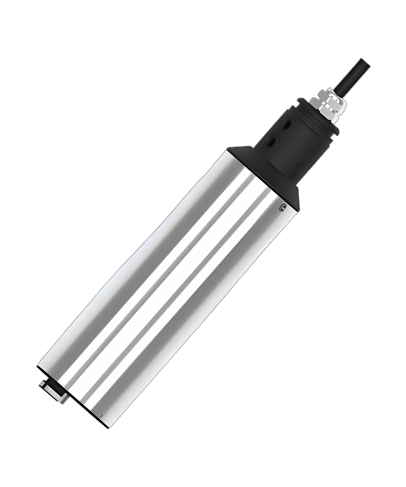

The sensor adopts the 90° scattered light principle and is equipped with precision optical components. It is compact and delicate, with simple and fast installation and maintenance. It can effectively resist ambient light interference, and features excellent measurement repeatability and high stability.
Measuring Range | 0.01~20000mg/L，0.01~45000mg/L，0.01~120000mg/L |
Measuring Principle | Light Scattering Method |
Measuring Accuracy | ≤5%FS |
Resolution | 0.01~1mg/L |
Repeatability | ±2% |
Pressure Range | ≤0.4Mpa |
Flow Rate | ≤2.5m/s |
Housing Material | 316 stainless steel |
Communication Signal | RS485 |
Operating Temperature | 0~45℃ |
Cable Length | Standard 10m |
IP Rating | IP68 |
Digital sensor with RS485 digital output, supporting Modbus protocol.
Equipped with self-cleaning brush to prevent microbial adhesion and extend maintenance intervals.
Adopts high-performance industrial online electrode for long-term stable operation. - Built-in calibration parameters, accurately calibrated before delivery, ready for direct use.
