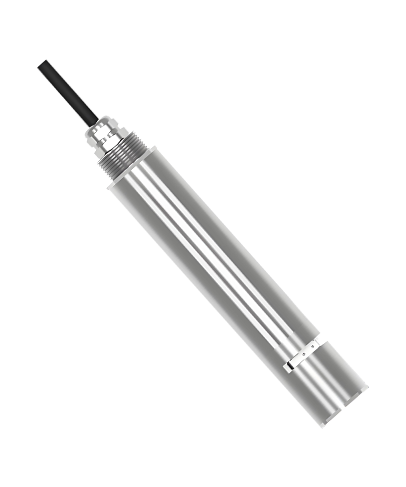

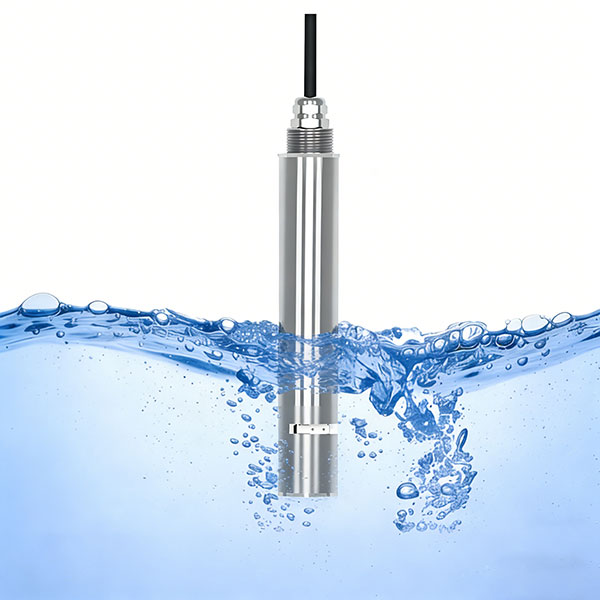

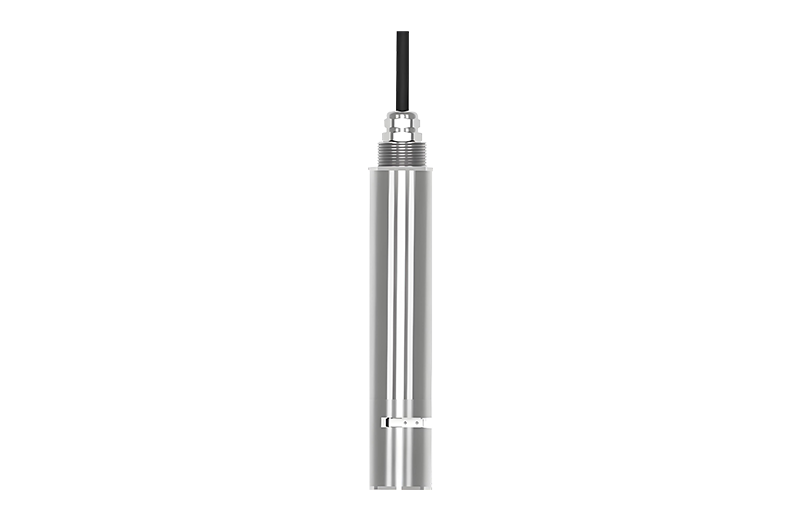

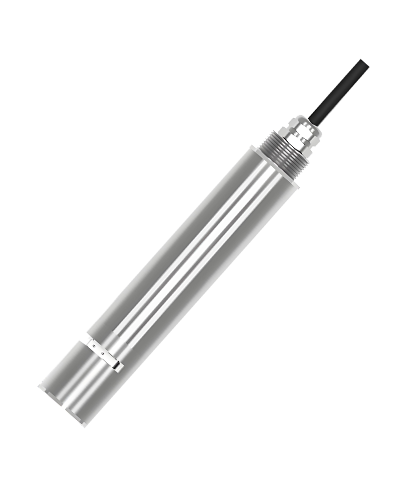

The sensor is based on the principle of ultraviolet light absorption, equipped with precision optical components. It features a compact and exquisite design, easy and fast installation and maintenance. It can effectively resist interference from ambient light, demonstrating excellent repeatability and high stability in measurement.
Measuring Range | 0~90mg/L，0~1000mg/L，0~2000mg/L |
Measuring Principle | UV Spectrophotometry |
Measuring Accuracy | ≤5%FS |
Resolution | 0.01mg/L |
Repeatability | ±2% |
Pressure Range | ≤0.4Mpa |
Housing Material | 316 stainless steel |
Communication Signal | RS485 |
Operating Temperature | 0~45℃ |
Storage Temperature | -15~50℃ |
Cable Length | Standard 10m |
IP Rating | IP68 |
Digital sensor, RS485 digital output supporting Modbus protocol;
Equipped with self-cleaning wiper to prevent microbial adhesion and extend maintenance interval;
Adopts high-performance industrial on-line electrode, capable of stable long-term operation;
Built-in calibration parameters, accurately calibrated before delivery, ready for direct use.
