ERUN-B6C

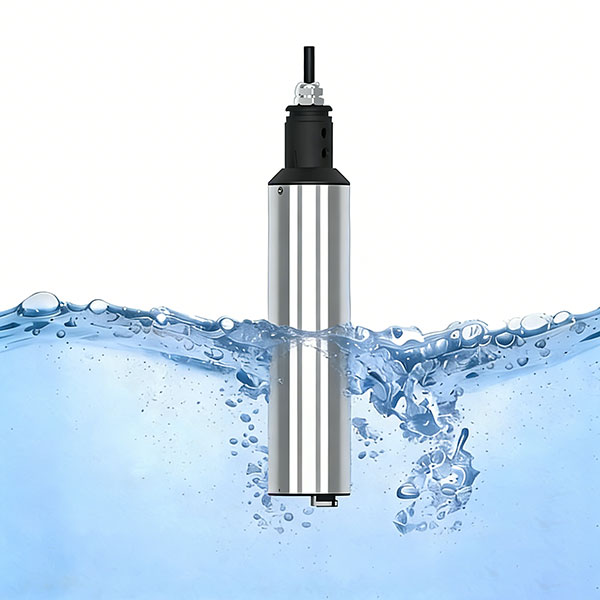

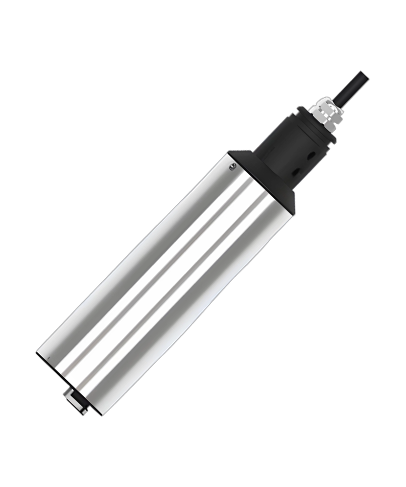

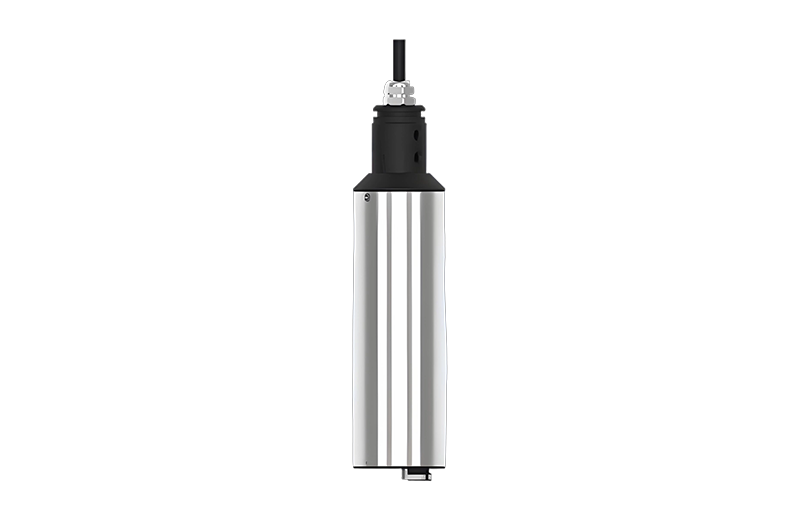

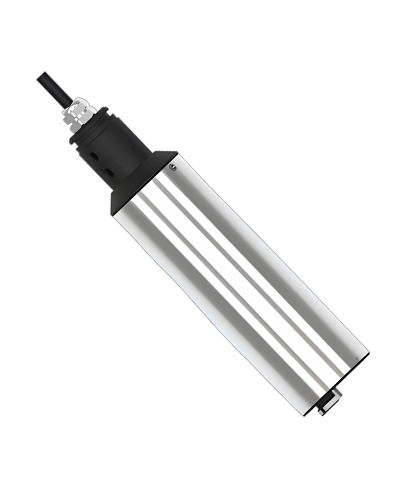

ERUN-B6C Online Water Turbidity Sensor for Swimming Pools

Mainly used for continuous real-time monitoring of water turbidity in industries such as tap water, drinking water, aquaculture, river monitoring, swimming pools, and wastewater treatment.

Introduction Parameters Features

Introduction

The sensor adopts the 90° scattered light principle and is equipped with precision optical components. It is compact and delicate, with simple and fast installation and maintenance. It can effectively resist ambient light interference, and features excellent measurement repeatability and high stability.

Parameters

Measuring Range	0.01-100NTU；0.01-4000NTU
Measuring Principle	90°Light Scattering Method
Measuring Accuracy	≤2%FS or ±0.1NTU
Resolution	0.01NTU、0.1NTU
Repeatability	±2%
Pressure Range	≤0.4Mpa
Flow Rate	≤2.5m/s
Housing Material	316 stainless steel
Communication Signal	RS485
Operating Temperature	0~45℃
Cable Length	Standard 10m
IP Rating	IP68

Features

Digital sensor with RS485 digital output, supporting Modbus protocol.
Equipped with self-cleaning brush to prevent microbial adhesion and extend maintenance intervals.
Adopts high-performance industrial online electrode for long-term stable operation. - Built-in calibration parameters, accurately calibrated before delivery, ready for direct use.
