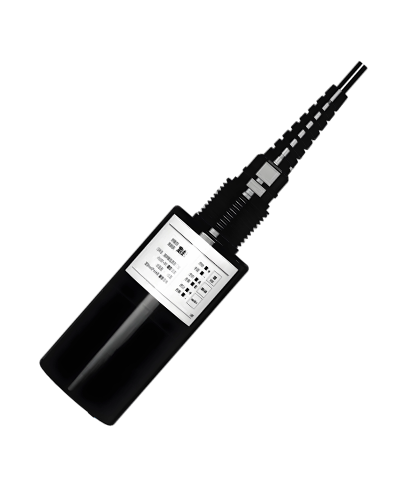

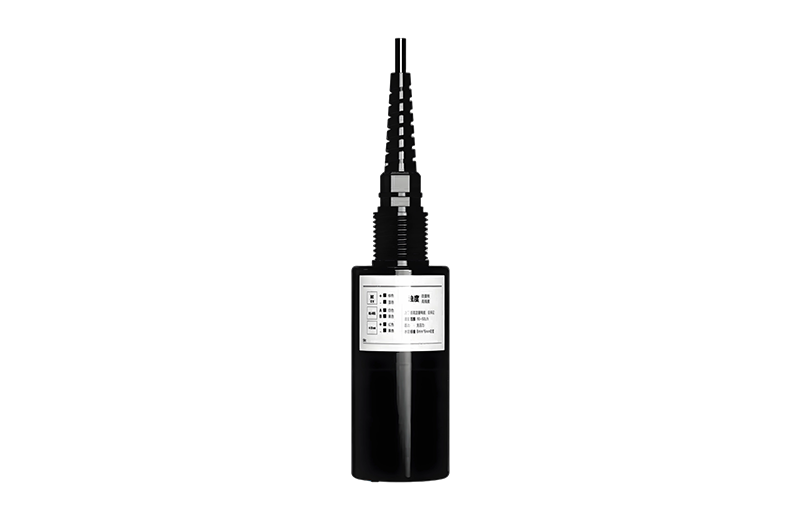

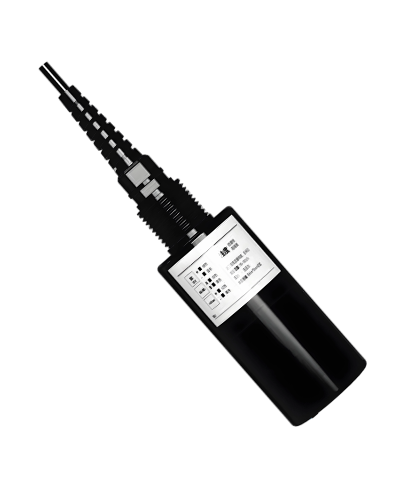

This product is an online water turbidity analyzer independently developed by ERUN Group. Based on the 90° scattered light principle, the sensor is equipped with precision optical components. It features a compact and delicate design with simple and fast installation and maintenance. It can effectively resist ambient light interference and deliver excellent measurement repeatability and high stability. It is widely used for continuous real-time monitoring of water turbidity in industries including tap water, drinking water, aquaculture, river monitoring, swimming pools and wastewater treatment.
Measuring Range | 10~4000NTU |
Measuring Principle | 90° Scattering Method |
Measuring Accuracy | ±5.0%FS |
Resolution | 0.01NTU |
Temperature Measuring Range | 0.0~60.0℃ |
Housing Material | 316 stainless steel |
Power Supply | DC9~30V |
Current Output Signal | 4-20mA |
Data Communication | RS485 |
Pressure Range | 0~2bar |
Connection Thread | G3/4 |
Cable Length | Standard 5m |
Installation Method | Immersion Type(Light-shielded) |
IP Rating | IP68 |
