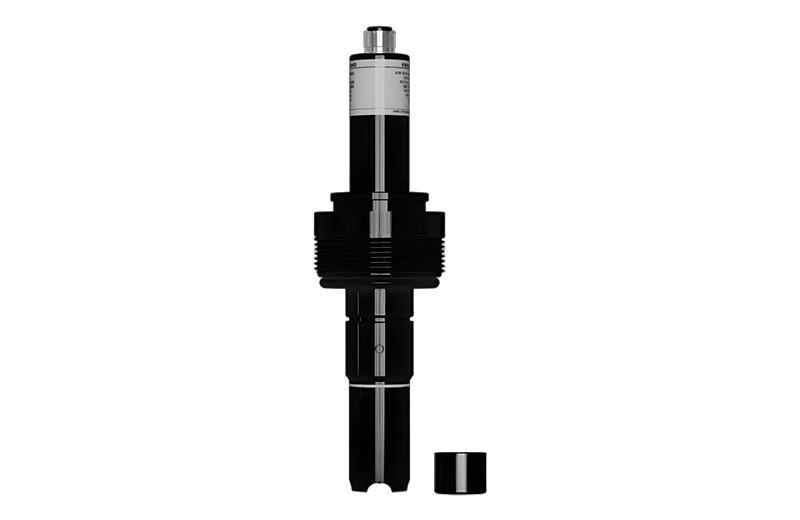

This product is a new type of online water residual chlorine sensor independently developed by ERUN Group. It features high stability and high precision, and can accurately measure the residual chlorine and temperature values in the solution. It is widely used for continuous real-time monitoring of residual chlorine in drinking water, sewage, boiler water, aquaculture, and biomedicine industries.
Measuring Range | 0.00~20.00mg/L |
Measuring Accuracy | ±2%FS |
Temperature Measuring Range | 0.0~60.0℃ |
Pressure Range | 0~1bar |
Temperature Compensation Mode | Automatic / Manual |
Medium Flow Rate | 15~30L/h |
Housing Material | ABS |
Cable Length | Standard 5m |
Process Connection | M39*1.5 |
Electrical Connection | M12 interface |
Installation Method | Flow-through type |
Output | 4~20mA |
Load | ＜500Ω |
Data Communication | RS485 |
Power Supply | DC9~30V |
IP Rating | IP68 |
