Brand: Erun

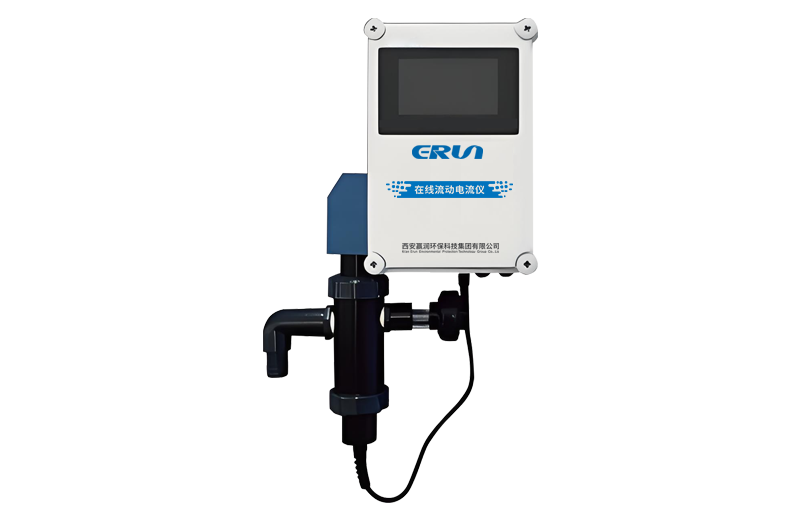

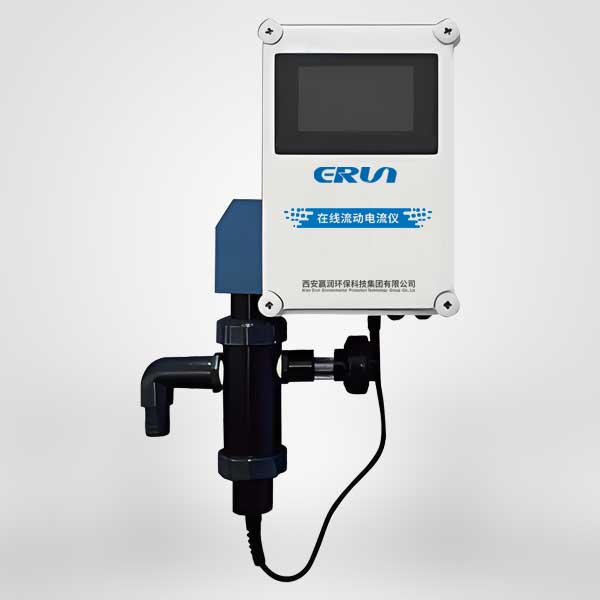

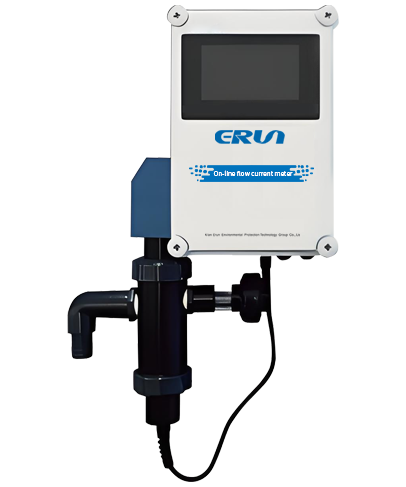

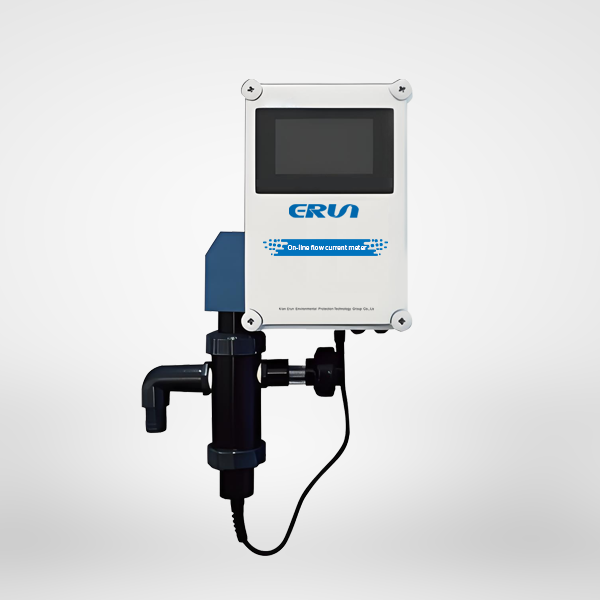

Title：Current flow meter
Model: ERUN-SZ-SCD
Parameters: Ionic and colloidal charge
ERUN-SZ-SCD flow current meter sold by Erun Environmental Protection continuously measures ionic and colloidal charges on-line, which is used to automatically regulate and control flocculant dosing.Superior sensor design ensures long and trouble-free operation of the instrument. Ensure optimal flocculant dosage. On-line flow current meter is a precision instrument for real-time monitoring of the surface charge characteristics of colloidal particles in liquids, and its core application areas are focused on water treatment, industrial process optimization and environmental monitoring.
model number | ERUN-SZ-SCD |
measured parameter | Flow current/SCD |
Measurement range | -1000~1000SC（mV） |
accuracy | ±0.1% |
repeatable | ±0.1% |
response time | 1s |
operating temperature | 0-50℃ |
Liquid joint material | PTFE、POM、SS316 |
Housing Material | ABS |
Power supply | 220VAC，50/60Hz |
speed of moving fluid | Recommended flow rate 2-4L/min |
analog output | 1 channel 4-20mA, maximum load 500Ω |
relay output | 2 high/low relays with programmable alarm value and hysteresis |
digital communications | RS485 Modbus RTU |
data storage | Real-time data logging, support U disk export (Excel format) |
protection class | IP65 |
Mounting Dimensions | 250×350×150mm |
weights | 5Kg |
1、Simultaneously display the actual SC value and relative SC value | 2、Dramatically reduce the cost of flocculant |
3、Automatic control of flocculant dosing | 4, to maintain water quality, to ensure that the water quality of the water out of the standard |
5. Early warning protection | 6、Optimization processing |
7、Easy to modify | 8、Durable sensors |
9、Signal gain adjustment and zero adjustment | 10、2xHi/Lo alarm relay outputs |
11、4-20mA current output | 12. Low operation and maintenance costs |
