Brand：Erun

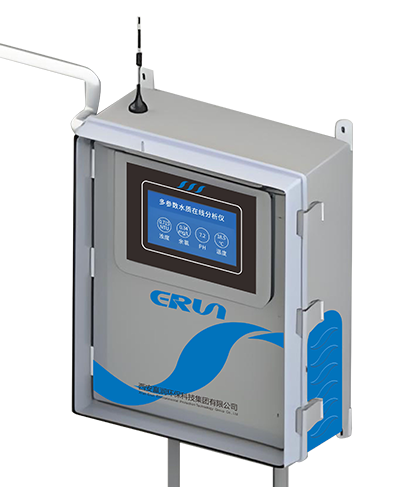

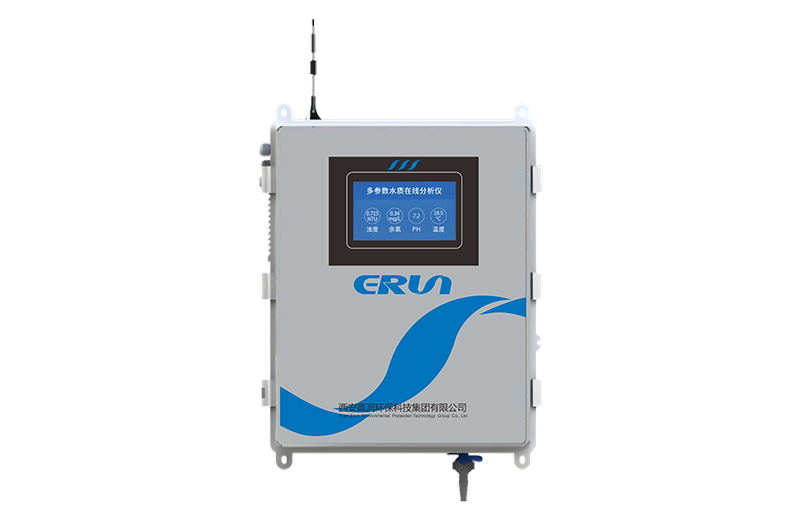

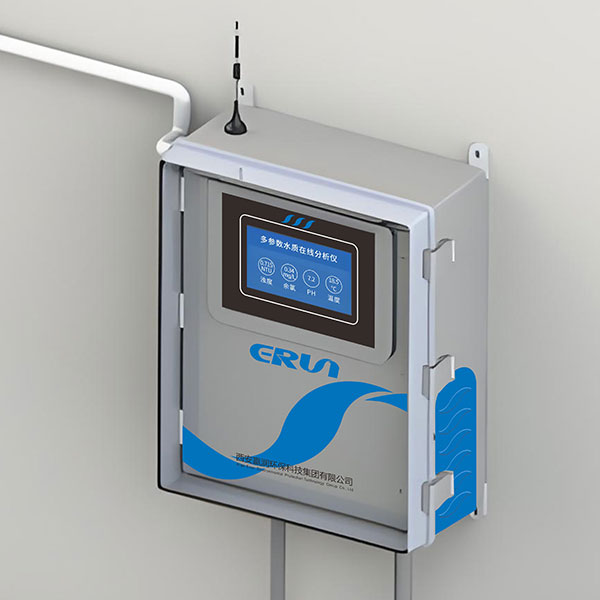

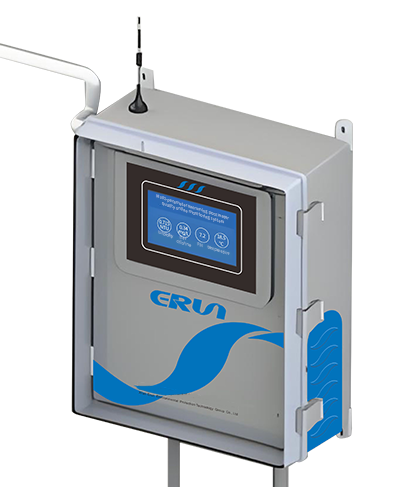

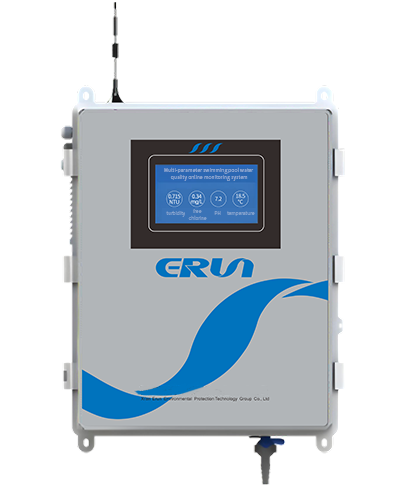

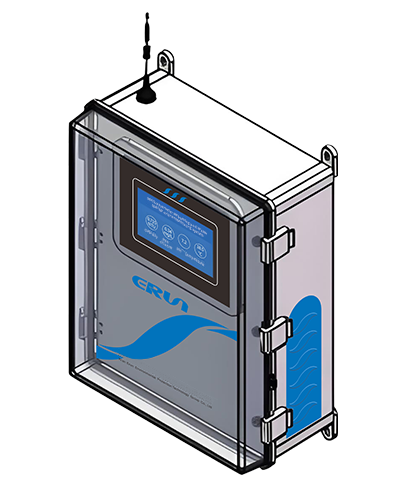

Multi-parameter water quality disinfectant online monitoring system
Model：ERUN-WQS-6021
residual chlorine/chlorine dioxide/ozone/total chlorine
ERUN-WQS-6021 Multi-Parameter Water Quality Disinfectant Online Monitoring System is an intelligent, high-precision monitoring equipment designed for the water treatment industry.The system can real-time on-line monitor a variety of key parameters in the water body, such as residual chlorine, total chlorine, ozone, chlorine dioxide, turbidity, pH and conductivity, etc., to comprehensively assess the water quality and safety conditions.Adopting advanced sensor technology and stable data transmission module, the system is characterized by fast response speed, high measurement accuracy and stable operation, and can be directly connected to the "Water Quality Cloud Platform" and the "Water Quality Cloud WeChat Mobile Terminal".
It is suitable for waterworks, sewage treatment plants, swimming pools, hospitals and food industry to meet the needs of water quality monitoring in different scenarios.The system supports remote data management and alarm function, which is convenient for users to grasp the changes of water quality in time and improve the management efficiency.ERUN-WQS-6021 helps to realize the all-weather and automated monitoring of water quality and safety, and guarantee the safety of water use.
Detection parameters | Residual chlorine, chlorine dioxide, ozone, total chlorine |
range | Residual chlorine: 0~5mg/L (default), 0~20mg/L optional Ozone: 0~5mg/L (default), 0~20mg/L selectable Chlorine dioxide: 0~5mg/L (default), 0~20mg/L optional Total chlorine: 0~5mg/L (default), 0~20mg/L optional |
resolution | 0.001mg/L |
accuracy | Residual chlorine: ±5% or ±0.05mg/L whichever is greater. |
operating temperature | -5℃ ~ 45℃ |
influent flow | 500~1000mL/min |
influent pressure | 0.6MPa |
data transmission | RS485 interface + 4G (web API) with optional 4-20mA module |
Display output | 7-inch touch screen |
power supply | DC24V power supply |
Shell material | ABS |
Product Size | 405mm*500mm*19mm（Subject to actual configuration） |
Integrated design: integrated structure, unified water inlet and outlet, centralized data display, wall-mounted to effectively prevent flooding and ground moisture impact, space-saving, convenient installation and maintenance; Multi-parameter monitoring: Integration of a variety of sensors, simultaneous online monitoring of turbidity, disinfectant (residual chlorine / high-purity chlorine dioxide / ozone), pH, temperature, conductivity / TDS, ORP and many other water quality parameters; Highly accurate measurement: Long-term stable and accurate measurement capability in the range of tap water (0.1~1NTU) and pure water (0.001~0.1NTU); High reliability: key sensors and components are imported parts, specifically for water quality online analysis of a number of optimized design, stable operation and long life; Easy to integrate: Support standard RS485 Modbus-RTU protocol and wireless data transmission, cloud platform compatible with third-party system access, easy to network and intelligent management. |
