In industries where water purity is critical—such as power generation, semiconductor manufacturing, pharmaceuticals, and chemical production—maintaining high-quality water is essential for operational efficiency and product integrity. Hydrogen conductivity detectors, also referred to as cation conductivity analyzers, play a pivotal role in this process by providing precise measurements of ionic impurities in water. This article explores the technology, applications, and benefits of hydrogen conductivity detectors, with a focus on the ERUN-SP3-A4 Portable Hydrogen Conductivity Analyser from West Anhui Environmental Protection Technology Group Co., Ltd.
Hydrogen conductivity detection involves measuring the electrical conductivity of water after it has passed through a cation exchange resin. This resin replaces all cations (e.g., sodium, potassium, calcium) with hydrogen ions (H⁺), which have a high conductivity. The resulting measurement highlights the presence of anions (e.g., chloride, sulfate, nitrate), which are indicative of contamination. Unlike standard conductivity measurements that capture all ions, hydrogen conductivity specifically isolates anionic impurities, making it highly sensitive for high-purity water systems.
Trace ionic impurities in water can lead to significant challenges:
Corrosion and Scaling: In power plants, anions can corrode boilers and turbines, reducing efficiency and increasing maintenance costs.
Product Quality Risks: In semiconductor manufacturing, impurities can compromise electronic components, while in pharmaceuticals, they can affect drug safety.
Operational Downtime: In chemical industries, scaling in cooling systems can lead to costly interruptions.
By detecting these impurities early, hydrogen conductivity detectors enable proactive measures to maintain water quality, protect equipment, and ensure compliance with industry standards.

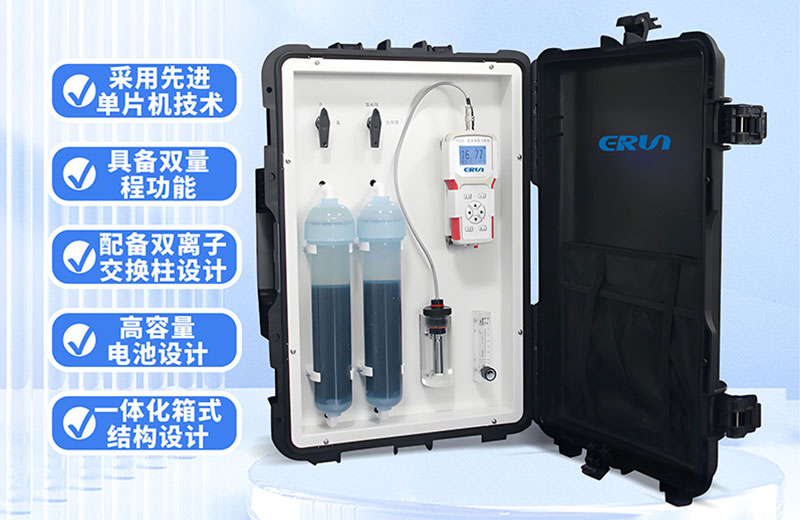

The ERUN-SP3-A4 Portable Hydrogen Conductivity Analyser is designed to meet the rigorous demands of industrial water quality monitoring. Manufactured by West Anhui Environmental Protection Technology Group Co., Ltd., based in Xi’an, China, this instrument combines precision, portability, and advanced features to deliver reliable performance.
| Specification | Details |
|---|---|
| Model | ERUN-SP3-A4 |
| Measurement Range | K=0.01cm⁻¹ (0.000–2.000) μS/cm and (0.00–20.00) μS/cm |
| Accuracy | ±2.5% F·S |
| Resolution | 0.001 μS/cm |
| Temperature Range | 5–60°C (water sample) |
| Power Supply | AC (220±2)V, frequency (50±5)Hz |
| Dimensions | 610mm × 440mm × 250mm |
| Weight | 15kg |
| Battery Life | Up to 8 hours continuous use |
| Data Storage | Cycle storage, retains data >10 years |
High Precision: Offers a resolution of 0.001 μS/cm and accuracy of ±2.5% F·S, ensuring detailed measurements.
Dual-Range Function: Automatically switches between two ranges to adapt to varying water quality conditions.
Double Ion Exchange Column: Enhances measurement reliability by ensuring consistent cation conversion.
Multi-Parameter Display: Shows hydrogen conductivity, temperature, and other data on a 128×64 dot matrix LCD.
Portability: Compact (610mm × 440mm × 250mm) and lightweight (15kg), with an 8-hour battery life for field use.
Robust Design: Integrated box design protects against dust and moisture, with a built-in flow meter for accurate sampling.
Data Management: Stores data with automatic deletion of expired records and retains data for over 10 years post-power failure.
Hydrogen conductivity detectors like the ERUN-SP3-A4 are critical in various sectors:
Power Generation: Monitors boiler feedwater and steam to prevent corrosion, ensuring efficient turbine operation.
Semiconductor Manufacturing: Ensures ultra-pure water for processes like wafer cleaning, preventing defects in electronic components.
Pharmaceuticals: Maintains water purity for drug production, meeting stringent regulatory requirements.
Chemical and Petrochemical: Prevents scaling in cooling systems, enhancing operational efficiency.
Food and Beverage: Ensures water quality for production processes, maintaining product consistency and safety.
The ERUN-SP3-A4 operates by:
Sample Processing: Water passes through a cation exchange resin, converting cations to hydrogen ions.
Conductivity Measurement: The treated water flows through a conductivity cell, where its electrical conductivity is measured.
Data Analysis: The instrument uses temperature compensation and advanced algorithms to provide accurate readings, highlighting any anionic impurities.
This method is more sensitive than traditional conductivity measurements, making it ideal for detecting low-level contaminants in high-purity water systems.
Using a hydrogen conductivity detector offers several advantages:
Early Contamination Detection: Identifies impurities before they cause damage, enabling timely interventions.
Optimized Water Treatment: Allows precise adjustments to water treatment processes, reducing waste and costs.
Regulatory Compliance: Ensures adherence to standards like NB/T 10937-2022 for boiler water treatment.
Equipment Longevity: Prevents corrosion and scaling, extending the lifespan of critical infrastructure.
Enhanced Product Quality: Maintains water purity to ensure high-quality outputs in manufacturing.
The ERUN-SP3-A4 aligns with NB/T 10937-2022, a Chinese national standard for boiler water treatment and monitoring, published on May 13, 2022, and implemented on November 13, 2022. This compliance ensures the instrument meets rigorous requirements for accuracy and reliability in industrial applications.
The ERUN-SP3-A4 stands out due to its:
Portability: Ideal for on-site testing in remote or challenging environments.
Precision and Versatility: Dual-range functionality and high resolution cater to diverse water quality needs.
Durability: The integrated box design withstands harsh conditions, ensuring long-term reliability.
Ease of Use: A user-friendly interface with a clear LCD display simplifies operation and data interpretation.
Consider a thermal power plant where a sudden increase in hydrogen conductivity signals a water treatment system failure. The ERUN-SP3-A4 detects this anomaly, allowing operators to address the issue promptly, preventing costly damage to boilers and turbines. Similarly, in a semiconductor cleanroom, the analyser ensures ultra-pure water for wafer processing, safeguarding product quality and yield.
If you’re seeking a reliable solution for water quality monitoring, the ERUN-SP3-A4 Portable Hydrogen Conductivity Analyser is an excellent choice. Visit our website to learn more or contact West Anhui Environmental Protection Technology Group Co., Ltd. at 18166600151 to discuss how this instrument can enhance your operations.
Hydrogen conductivity detectors are indispensable for maintaining water purity in industrial applications, preventing equipment damage, ensuring product quality, and meeting regulatory standards. The ERUN-SP3-A4, with its advanced features, portability, and compliance with standards like NB/T 10937-2022, offers a robust solution for industries worldwide. By investing in this technology, businesses can optimize water systems, reduce costs, and achieve operational excellence.
