Rapid testing instrument for basic water quality items in five types of surface water

The synopsis of project
The ERUN-SP series rapid testing instrument for basic water quality items in five types of surface water developed and produced by Erun Group is suitable for quick testing of on-site water quality of rivers, lakes, canals, channels, reservoirs and other surface waters. The multi parameter rapid testing instrument for Class I to V surface water can test the concentration values of basic water quality parameters in GB3838 surface water environmental quality standard, including water temperature, pH value, dissolved oxygen, COD, BOD, ammonia nitrogen, total phosphorus, total nitrogen, heavy metals, inorganic salts, petroleum, fecal coliform bacteria, etc. The portable five types of water quality basic item analyzer can be used for centralized surface water sources, habitats of rare aquatic organisms, spawning grounds/wintering grounds for fish and shrimp, aquaculture areas and other fishery water bodies, as well as swimming areas, agricultural water areas and general landscape requirements water bodies, to determine whether it is a Class I, II water body, or Class III, IV, and V water body.
The contents of project

1、Five types of surface water functional classification:

(1)Class Ⅰ

Mainly suitable for source water and national nature reserves.。

(2)Class

Mainly suitable for centralized surface water source protection areas, habitats of rare aquatic organisms, spawning grounds for fish and shrimp, and feeding grounds for juvenile and juvenile fish, etc。

(3)Class

Mainly suitable for centralized drinking water surface water source secondary protection areas, fish and shrimp wintering grounds, migration channels, aquaculture areas and other fishery water bodies and swimming areas。

(4)Class

Mainly suitable for general industrial water use areas and entertainment water use areas that are not directly in contact with the human body。

(5)Class

Mainly suitable for agricultural water use areas and water bodies with general landscape requirements。


2、Basic project standard limits for surface water environmental quality standards:


Serial No.

Items

Class Ⅰ

Class

Class

Class

Class

1

Temperature(℃)

Human induced changes in environmental water temperature should be limited to:

Maximum weekly average temperature rise ≤ 1

Weekly average maximum temperature drop ≤ 2

2

PH

6~9

3

Dissolved oxygen(

saturation rate 90%(or 7.5)

6

5

3

2

4

Permanganate index

2

4

6

10

15

5

Chemical oxygen demand

15

15

20

30

40

6

Biochemical oxygen demand

3

3

4

6

10

7

Ammonia nitrogen

0.15

0.5

1.0

1.5

2.0

8

Total phosphorus

0.02

(Lake & Reservoir 0.01)

0.1

(Lake & Reservoir 0.025)

0.2

(Lake & Reservoir 0.05)

0.3

(Lake & Reservoir 0.1)

0.4

(Lake & Reservoir 0.2)

9

Total nitrogen

0.2

0.5

1.0

1.5

2.0

10

Copper

0.01

1.0

1.0

1.0

1.0

11

Zinc

0.05

1.0

1.0

2.0

2.0

12

Fluoride

1.0

1.0

1.0

1.5

1.5

13

Selenium

0.01

0.01

0.01

0.02

0.02

14

Arsenic

0.05

0.05

0.05

0.1

0.1

15

Mercury

0.00005

0.00005

0.0001

0.001

0.001

16

Cadmium

0.001

0.005

0.005

0.005

0.01

17

Hexavalent chrome

0.01

0.05

0.05

0.05

0.1

18

Lead

0.01

0.01

0.05

0.05

0.1

19

Cyanide

0.005

0.05

0.2

0.2

0.2

20

Volatile phenols

0.002

0.002

0.005

0.01

0.1

21

Oil

0.05

0.05

0.05

0.5

1.0

22

Anionic surfactant

0.2

0.2

0.2

0.3

0.3

23

Sulphide

0.05

0.1

0.05

0.5

1.0

24

Thermotolerant coliforms

200

2000

10000

20000

40000


3、Technical parameters of rapid testing instrument for basic water quality items in five types of surface water:


Serial No.

Items

Measuring range

Unit

Maximum deviation

Analysis methods

GB & HJ

1

Temperature(℃)

0-99

±1

Thermometer method

GB 13195

2

PH

0.00-14.00

/

±0.01

Glass electrode method

GB 6920

3

Dissolved oxygen

0.0-20.0

mg/L

±0.2

Electrochemical probe method

GB 11913

4

Permanganate index

0.00-10.00

mg/L

0.2 or 5%

Permanganate index method

GB 11892

5

Chemical oxygen demand

5-2000

mg/L

5%

Dichromate Method

GB 11914

6

Biochemical oxygen demand

0-4000

mg/L

±8%

Dilution and seeding method

GB 7488

7

Ammonia nitrogen

0.02-25.00

mg/L

3%(F.S.)

Nessler's reagent colorimetric method

GB 7479

8

Total phosphorus

0.02-10.00

mg/L

5%(F.S.)

Ammonium molybdate spectrophotometric method

GB 11893

9

Total nitrogen

0.10-150

mg/L

5%(F.S.)

Alkaline potassium persulfate digestion-UV spectro photo metric method

GB 11894

10

Copper

0.02-10.0

mg/L

5%(F.S.)

Sodium diethyldithiocarbamate spectrophotometric method

GB 7474

11

Zinc

0.2-5.0

mg/L

5%(F.S.)

Atomic absorption spectrophotometry

GB 7475

12

Fluoride

0.05-2.0

mg/L

5%(F.S.)

Fluor reagent spectrophotometic method

GB 7483

13

Arsenic

0.004-0.500

mg/L

5%(F.S.)

Silver diethyldithiocarbamate spectrophotometric method

GB 7485

14

Mercury

0.002-0.50

mg/L

5%(F.S.)

Cold atomic absorption spectrophotometric method

GB 7486

15

Cadmium

0.05-0.50

mg/L

5%(F.S.)

Atomic absorption spectrophotometry (chelation extraction method)

GB 7475

16

Hexavalent chrome

0.01-1.00

mg/L

5%(F.S.)

1,5-Diphenylcarbonate spectrophotometric method

GB 7467

17

Lead

0.01-0.50

mg/L

5%(F.S.)

Atomic absorption spectrophotometry (chelation extraction method)

GB 7475

18

Cyanide

0.01-0.50

mg/L

5%(F.S.)

Isonicotinic acid pyrazolone colorimetric method

GB 7487

19

Volatile phenols

0.20-10.0

mg/L

5%(F.S.)

4-AAP spectrophotometric method

GB 7490

20

Oil

0-900

mg/L

5%(F.S.)

Iinfrared photometric method

GB/T 16488

21

Anionic surfactant

0.01-1.0

mg/L

5%(F.S.)

Methylene blue spectrophotometric method

GB 7494

22

Sulphide

0.005-1.000

mg/L

5%(F.S.)

Methylene blue spectrophotometric method

GB/T 16489

23

Thermotolerant coliforms

/

Pieces/L

5%(F.S.)

Manifold zymotechnics

HJ 347.2


4、List of rapid testing instrument for basic water quality items in five types of surface water:

Serial No.

Part Number

Name

Items

Pictures

1

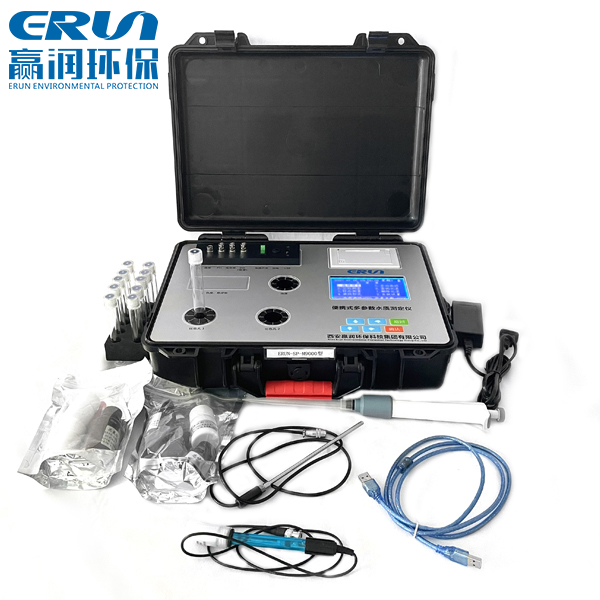

ERUN-SP-M9000

Portable multi-parameter water quality tester

temperature, pH, dissolved oxygen, permanganate index, chemical oxygen demand, ammonia nitrogen, total phosphorus, total nitrogen, copper, zinc, fluoride, arsenic, mercury, cadmium, chromium (hexavalent), lead, cyanide, volatile phenols, anionic surfactant, sulfide

Portable multi-parameter water quality tester


2

ERUN-ST-OD380

Laboratory benchtop multi-parameter water quality analyzer

oil

Laboratory benchtop multi-parameter water quality analyzer


3

ERUN-BY-2A

Intelligent water quality BOD5 testing instrument

biochemical oxygen demand

Intelligent water quality BOD5 testing instrument

4

ERUN-SP-MD690

Portable water quality microbiological tester

thermotolerant coliforms

Portable water quality microbiological tester

Note: Analysis parameter items can be flexibly combined and selected according to the customer's own needs.


5、The parts list of rapid testing instrument for basic water quality items in five types of surface water:

Serial No.

Name

Specifications

Quantity

1

colorimetric tube

Ф25×95mm

10

2

colorimetric tube

Ф16×110mm

10

3

cuvette

White

2

4

pipette gun

Minimum graduation 0.1mL

2

5

permanganate index reagent

100 times/set

1

6

chemical oxygen demand reagent

200 times/set

1

7

ammonia nitrogen reagent

200 times/set

1

8

total phosphorus reagent100 times/set

1

9

total nitrogen reagent50 times/set

1

10

copper reagent100 times/set

1

11

zinc reagent50 times/set

1

12

fluoride reagent

50 times/set

1

13arsenic reagent50 times/set1
14mercury reagent50 times/set1
15cadmium reagent50 times/set1
16hexavalent chrome reagent100 times/set1
17lead reagent50 times/set1
18cyanide reagent50 times/set1
19volatile phenols reagent100 times/set1
20anionic surfactant reagent20 times/set1

21

sulphide reagent

50 times/set

1

22

multifunctional CNC digestion instrument

ERUN-DIG-1D

1

23

water bath

/

1

24

biochemical incubator

ERUN-SHX100

1

25

temperature electrode

/

1

26

PH electrode

/

1

27

dissolved oxygen electrode

/

1

28
chargers and charging cables/1
29USB cable/1
30instruction manual/1
31

product certificate

/product warranty card

/1

Note: Analysis parameter items can be flexibly combined and selected according to the customer's own needs.
