Surface water conventional five-parameter portable water quality rapid tester

The synopsis of project
The ERUN-SP-M9000 series of surface water conventional five-parameter portable water quality rapid tester developed and produced by Erun Group is suitable for on-site rapid analysis of surface water environmental quality. The portable conventional five-parameter testing instrument for surface water refer to "GB 3838" standards, it can quickly detect five conventional water quality parameters: temperature, pH, dissolved oxygen, turbidity and conductivity of surface water such as rivers and lakes. The multi-parameter rapid water quality tester for rivers and lakes can be used for rapid testing of outdoor on-site surface water quality. It can help users quickly understand and grasp water quality conditions, and is of great significance for early warning of major or mobile water pollution incidents.
The contents of project

1、General 5 parameters of surface water:

(1) Temperature

Temperature fluctuations in surface water, especially non-seasonal abnormal changes, often have serious impacts on animals and plants in the ecological environment, and in extreme cases can lead to massive deaths. The GB 13195 thermometer method is mainly used for measurement.


(2)PH

The pH value of water quality is one of the key indicators. In surface waters, changes in pH affect animal feeding and algae's absorption of oxygen. The GB 6920 glass electrode method is usually used to measure pH value.


(3) Dissolved oxygen

Dissolved oxygen in water not only provides respiration for organisms, but is also used by oxygen-consuming microorganisms and is consumed by reducing substances such as sulfite ions, nitrite ions, and sulfides. It is the key to judging the self-purification ability of water quality, and is mainly measured by the GB 11913 electrochemical probe method.


(4) Turbidity

Turbidity reflects the cloudiness of water and is primarily caused by insoluble solids. Reducing turbidity helps reduce corrosives, bacteria, phytoplankton, and coliforms. The formazine turbidity method is currently widely used for determination.


(5) Conductivity

Conductivity not only shows the conductivity of water, but also indirectly reflects information such as total dissolved solids (TDS), salinity, and total ion concentration in the solution. The current mainstream measurement method is the electrode method.


2、Technical parameters of conventional five-parameter tester for surface water:

Serial No.ItemsMeasuring rangeUnitMaximum deviation
1Turbidity0-400NTU≤2%(F.S)
2PH0.00-14.00PH±0.2
3Dissolved oxygen0.1-10.0mg/L0.1±5%
4Conductivity0.00µs/cm-199.9ms/cmms/cm1.0% (F.S)
5Temperature-50-120±0.1

More parameters that need to be tested can be customized according to requirements.

Portable conventional five-parameter testing instrument for surface water_Multi-parameter rapid water quality tester for rivers and lakes

Testing method: Sampling test

Display mode: 5.0-inch Chinese and English LCD display

Data storage: can store 100 curves and 1999 data with time and parameter labels

Data transmission: peripheral USB interface, supports data management and instrument control

Optical path system: using solid-state light-emitting devices as both light sources and monochromators, cold light sources, and narrow-band interference optical systems

Light source life: The light source has a service life of 100,000 hours

Detection method: Electrode method & visible light spectrophotometry

Accuracy error: ≤5%F.S. (subject to specific parameters)

Power supply mode: AC 220V, built-in large-capacity rechargeable battery

Product size: 410mm×300mm×130mm

Product weight: 4kg

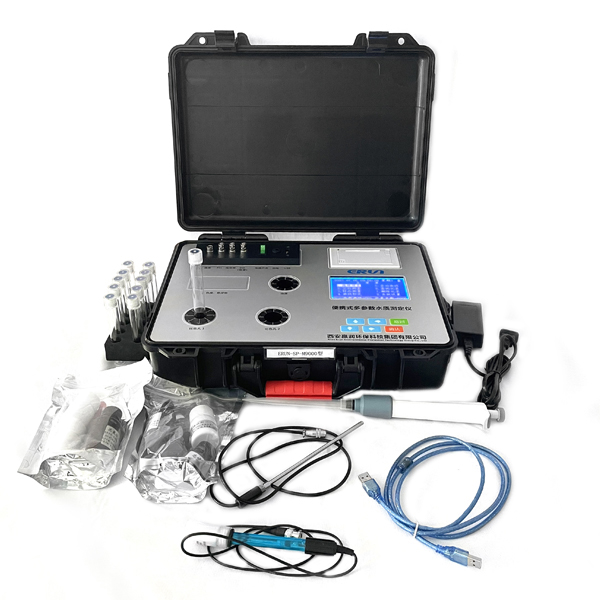

3、Configuration list of conventional five-parameter tester for surface water:

(1) 1 portable multi-parameter water quality analyzer

(2) 2 cuvettes

(3) 1 lens hood

(4) 1 temperature electrode

(5) 1 pH electrode

(6) 1 dissolved oxygen electrode

(7) 1 conductivity electrode

(8) USB cable and 1 charging power supply

(9) 1 instruction manual

(10) 1 product certificate and warranty card
